Baileigh Industrial 1006846 Description
Since we introduced the Baileigh R-M10 manual roll bender in 2004, this metal ring roller machine has proved it does almost everything larger roll benders can—for a fraction of the price. The R-M10 would be a perfect addition to any fabricating shop.
Baileigh Industrial 1006846 Includes
- (1) Manual Roll Bender
Baileigh Industrial 1006846 Features
- Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
- Open-face design allows you to roll full circles.

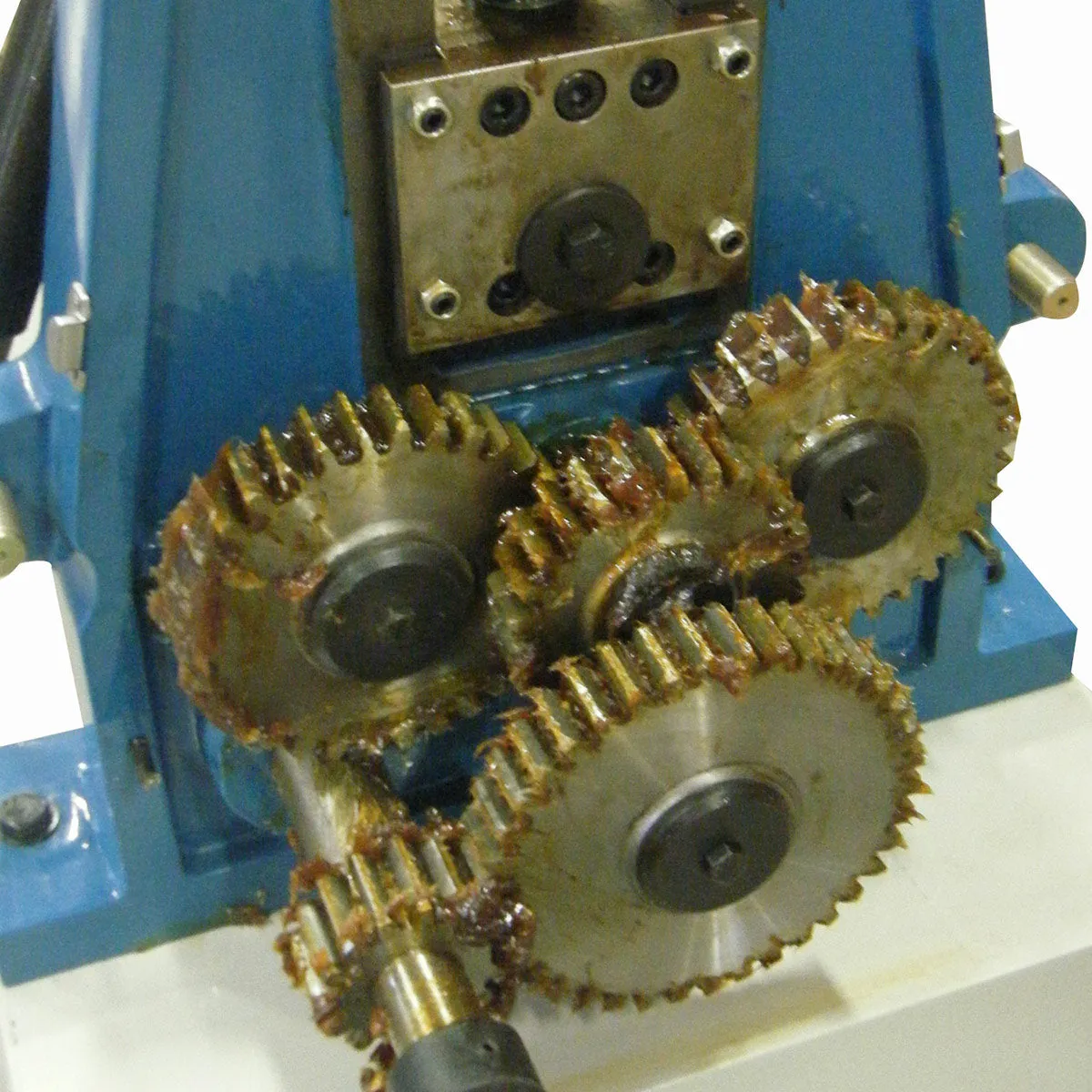

- Manual drive includes reduction gearbox to cut down on physical effort.

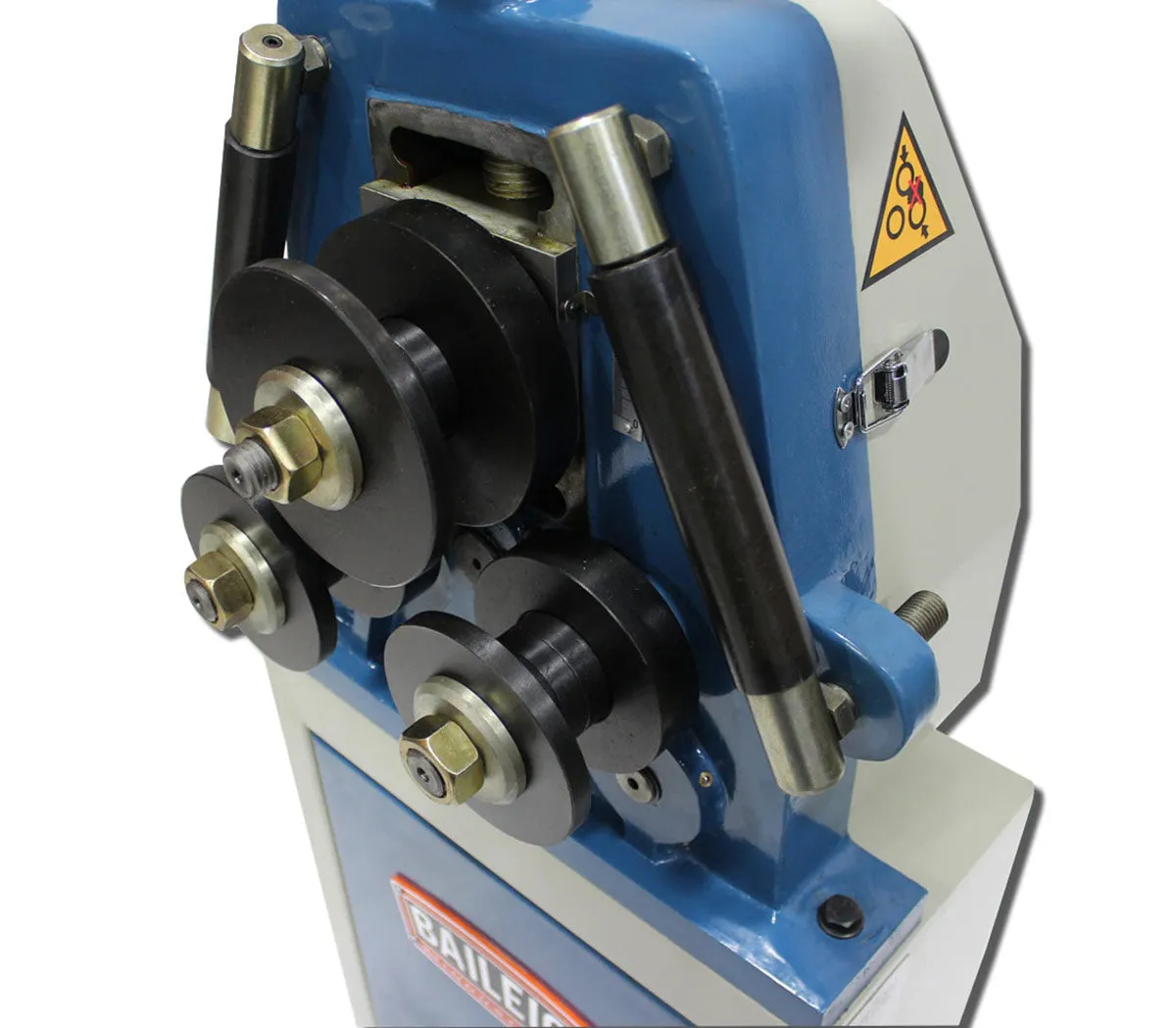

- Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing.
- Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.
- Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.

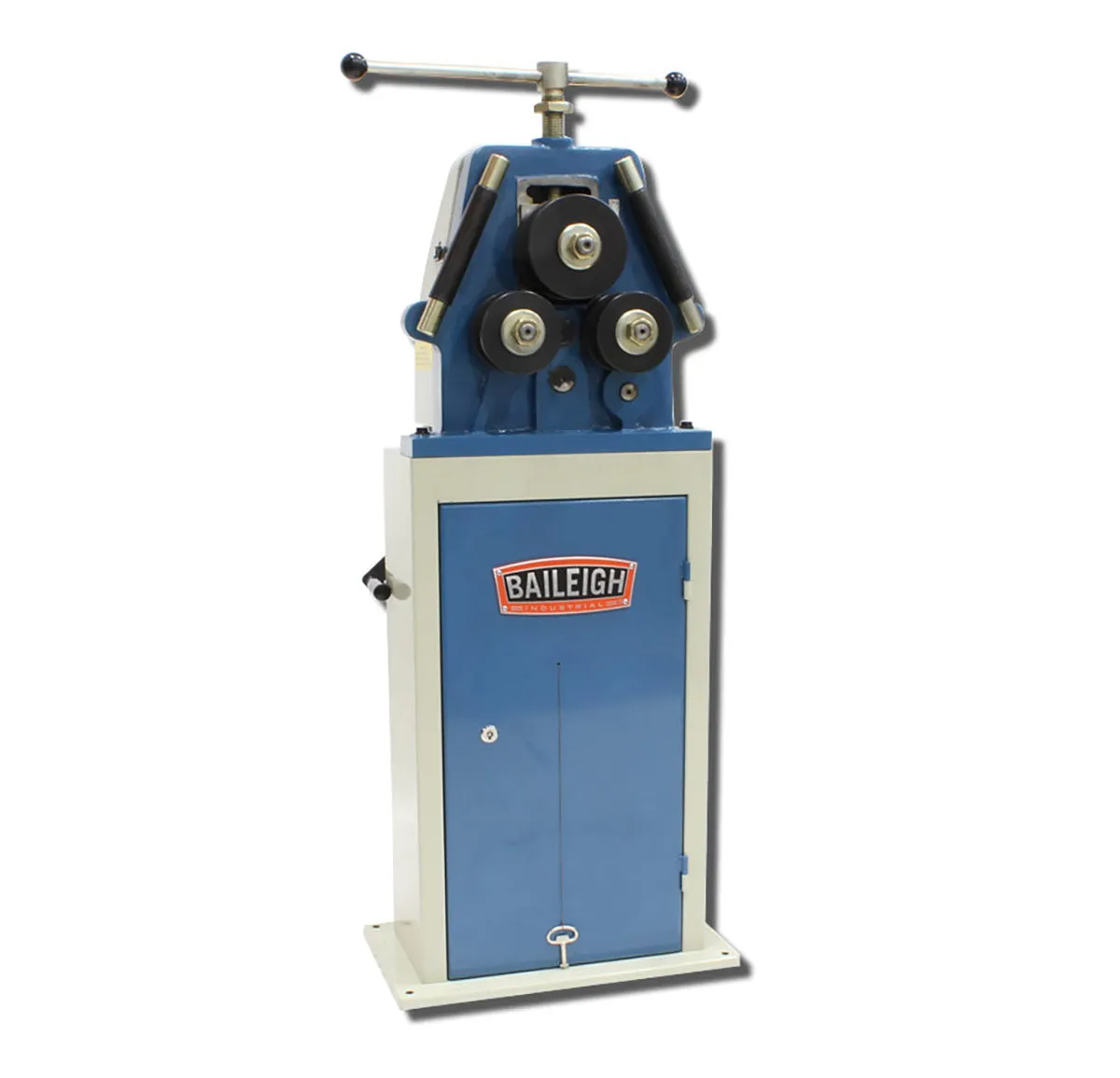

- Machine base opens to a handy storage cabinet.
- Many optional sizes of tooling are available for round tube and pipe, among other profiles.
- The Baileigh R-M10 manual roll bender is backed by our 1-year parts warranty.
Baileigh Industrial 1006846 Specifications
| Roll Adjustment | Manual |
| Pipe Capacity Size | 1" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 1.25" (.078") / Min. Dia. |
| Square Tube Capacity Size | 1.25" (.078") / Min. Dia. |
| Solid Round Capacity Size | .875" / Min. Dia. 20" |
| Flat Bar Easy Way | 1.96" (.39") / Min. Dia. |
| Flat Bar Hard Way | 1.18" (.39") / Min. Dia. |
| Angle Iron Capacity Size | 1.25" (.157") / Min. Dia. |
| Shaft Diameter | 1.181" |
| Shaft Center Distance | 6.7" |
